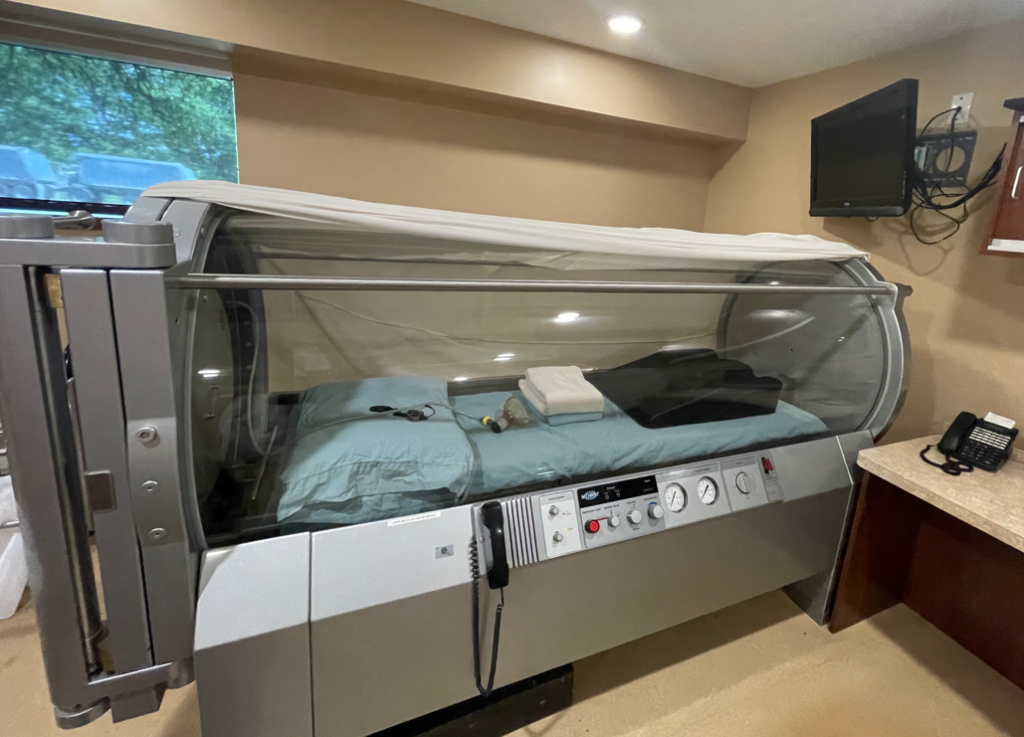

Sechrist 3600HR Monoplace Chamber
The Sechrist 3600H/HR is an FDA-cleared, Class II monoplace hyperbaric oxygen chamber featuring a 35.5″ internal diameter, 3.0 ATA maximum operating pressure, and a dual emergency vent system — designed, manufactured, and installed in compliance with ASME PVHO-1, NFPA-99, and 21 CFR Part 820.
6 Month Warranty
with extended warranty options
PRODUCT DESCRIPTION
The Sechrist 3600H/HR is an FDA-cleared, Class II monoplace hyperbaric oxygen chamber and part of Sechrist Industries’ H-Series — the top-tier line within Sechrist’s monoplace product range. Manufactured in Anaheim, California, USA since 1973, Sechrist chambers are designed, fabricated, assembled, tested, and installed in accordance with applicable national and international standards for clinical hyperbaric oxygen therapy.
The 3600H/HR is built around a 35.5″ internal diameter acrylic pressure vessel rated to a maximum operating pressure of 3.0 ATA (30.0 psig), and is configured as a 100% oxygen monoplace system with a standard 700 lb. patient weight capacity.
SPECIFICATIONS
| Internal Diameter | 35.50 in (90 cm) |
|---|---|
| Internal Length | 70 in (226 cm) |
| Maximum Operating Pressure | 3.0 ATA / 30.0 psig |
| Standard Patient Weight Capacity | 700 lbs (318 kg) |
| Chamber Weight | 2,220 lbs (1,009 kg) |
| Integrated entertainment system | |
| Critical Care Accommodation | |
| Dual Emergency Vent System | |
